6" Stainless steel series submersible pumps are made of corrosion resistance stainless steel with built in stainless steel check valve for years of trouble free service. All vital components are made of anti-corrosive high quality 304/316 grade stainless steel and the shaft in SS 431/329 and well designed for the best possible hydraulic efficiency. Pumps are multistage centrifugal type and the optimal design of impellers and diffusers enables the best possible hydraulic efficiency. The pump is firmly coupled to a submersible electrical motor which operates submerged beneath the surface of water. Built in check valve prevents back flow and reduces the risk of water hammering.
| Performance Chart | |
|---|---|
| Type | 6" & 8" |
| HP Range | 2.0 HP to 15.0 HP |
| Head Range | Upto 1200 feet (235 mters) |
| Phase | Three Phase |

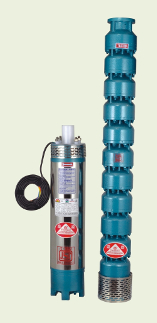

| V6 Submersible Pumpset (Mixed Flow) | |||
|---|---|---|---|
| S.No | Motor HP | Pump Stage | Head in feet upto |
| 1 | 4.0 HP | 3 | 90 |
| 2 | 5.0 HP | 4 | 120 |
| 3 | 6.0 HP | 5 | 150 |
| 4 | 7.5 HP | 6 | 180 |
| 4 | 7.5 HP | 8 | 240 |

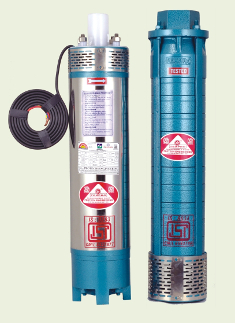

| V6 Submersible Pumpset (Radial Flow) | |||
|---|---|---|---|
| S.No | Motor HP | Pump Stage | Head in feet upto |
| 1 | 4.0 HP | 6 | 180 |
| 2 | 4.0 HP | 8 | 240 |
| 3 | 4.0 HP | 10 | 300 |
| 4 | 4.0 HP | 12 | 360 |
| 1 | 5.0 HP | 5 | 150 |
| 2 | 5.0 HP | 6 | 180 |
| 3 | 5.0 HP | 8 | 240 |
| 4 | 5.0 HP | 10 | 300 |
| 5 | 5.0 HP | 12 | 360 |
| 1 | 6.0 HP | 6 | 180 |
| 2 | 6.0 HP | 8 | 240 |
| 3 | 6.0 HP | 10 | 300 |
| 4 | 6.0 HP | 12 | 360 |
| 5 | 6.0 HP | 15 | 450 |
| 6 | 6.0 HP | 18 | 540 |
| 1 | 7.5 HP | 6 | 180 |
| V6 Submersible Pumpset (Radial Flow) | |||
|---|---|---|---|
| S.No | Motor HP | Pump Stage | Head in feet upto |
| 2 | 7.5 HP | 8 | 240 |
| 3 | 7.5 HP | 10 | 300 |
| 4 | 7.5 HP | 12 | 360 |
| 5 | 7.5 HP | 14 | 420 |
| 6 | 7.5 HP | 16 | 480 |
| 7 | 7.5 HP | 18 | 540 |
| 8 | 7.5 HP | 20 | 600 |
| 1 | 10 HP | 10 | 320 |
| 2 | 10 HP | 12 | 360 |
| 3 | 10 HP | 14 | 420 |
| 4 | 10 HP | 16 | 480 |
| 5 | 10 HP | 18 | 540 |
| 6 | 10 HP | 20 | 600 |
| 7 | 10 HP | 22 | 660 |
| 1 | 12.5 HP | 15 | 450 |
| 2 | 12.5 HP | 20 | 600 |
